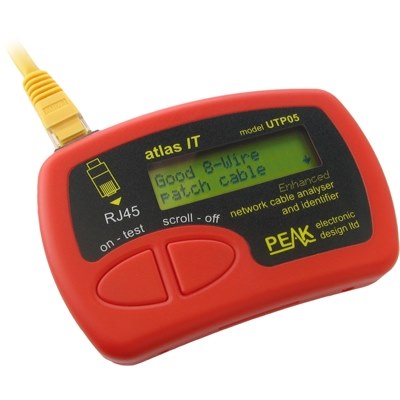

Peak Atlas IT Network Cable Analyser

Peak Comprehensive CAT 5/5e/6 network cable analyser. Easy to use and very fast. Automatically identifies cable type (Straight through, cross-over, token ring) and verifies all the connections. Faults are clearly displayed and explained on screen. The Atlas IT can even instruct you on making up special cables. Intelligent software can identify cable configurations even if there are faults in the cabling. It will even tell you the differences that it has detected between your faulty cable and the intended cable configuration.

Simply connect one end of your network cable to the Atlas IT and the other end to the Atlas IT Terminator and press the test button. Within seconds, the Atlas IT will analyse the full connection pattern between one end of the cable and the other end. It then instantly identifies the cable type (based on the connection pattern) and displays this on it's easy-to-read green-mode display.

The Atlas IT features an enhanced cable library, enabling the intelligent identification of cable configuration, such as: "Straight-Through Patch Cables", "Crossover Cables", "Token Ring Cables", "Ethernet Economiser Adapters" and many more.

If any problems in the cabling are detected, such as shorted, swapped or missing connections, the anayser will clearly identify these on it's display, showing exactly which connections require attention, and can identify many fault types including broken wires, shorted wires and swapped wires.

Supplied with fitted battery and spare battery, 2 x 300mm patch cables for socket testing, comprehensive user guide and paaded carrying case.
RoHS exempt
