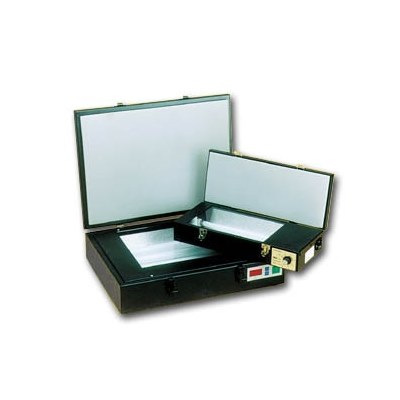

LV200 Series Ultraviolet Exposure Units

Ultraviolet exposure units with timers, suitable for exposing photo resist copper clad boards and labelling materials.

Model UV02 (250-370) is a low cost compact unit with a 6 minute mechanical timer. It incorporates two 8 watt UV tubes and has an exposure area of 229 x 159 mm. The lid is backed with a foam pad which exerts an even pressure to hold the artwork and photosensitive material in close contact when closed. All controls are conveniently front mounted and the unit is supplied with 2 metres of mains lead with IEC plug and sleeved 13 A mains plug, and full instructions. Dimensions: 438 x 184 x 92 mm

Model UV04 (250-375) is a larger unit with an exposure area of 330 x 260mm which makes it suitable for most PCBs, and a 7 ½ minute solid state timer. This unit incorporates four 15 watt UV tubes. Touch key controls, on-off switch and countdown digital timer are located on the from panel. Supplied with 2 metres of mains lead with IEC plug and sleeved 13 A mains plug, and full instructions. Dimensions: 514 x 368 x 120 mm
RoHS exempt
