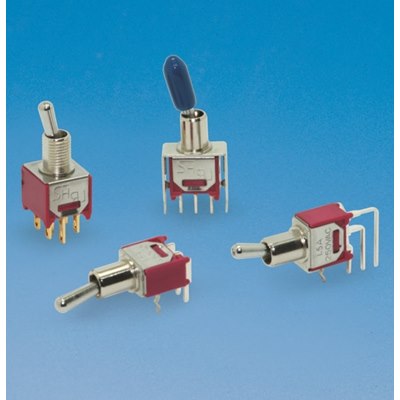

SPDT vertical PCB toggle on-off-on
by Salecom
A range of sub-miniature toggle switches with gold-plated terminal pins arranged on a 2.54 mm pitch grid,
for direct PCB mounting. Available in vertical or right angle styles, these toggle switches are particularly
suitable for use where panel or board space is at a premium.
Bushes are plain unthreaded.
Right angle types incorporate two support pins.
| Contact rating: | 20V AC/DC 0.4VA maximum |
| Temperature range: | -30 to +85 C |
| Insulation resistance: | >1000MΩ |
| Contact resistance: | <20mΩ initial @ 2-4Vdc 100 mA |
| Electrical life: | >30,000 make/break cycles at full load |
| Contact material: | Brass with gold plate over nickel barrier |
| Housing material: | Stainless steel |
| Bush: | Length: 5.5 mm | Diameter: 4.5 mm |
| Lever: | Length: 5.3 mm | Diameter: 2.5 mm |
| UL approved. Salecom TS40-T series. RoHS compliant |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-352 |
|---|---|
|
Manufacturer Ref.
|
TS4A-TE1CR-H |
|
Description
|
SPDT Vertical on-off-on |
