Salecom T80-T Series Flat Actuator Toggle Switch
Brand
Scroll Down for Pricing Options
T8013-UHBQ-H-Z33 SP Toggle Switch Flat Actuator
Roll over or select images to enlarge

Salecom T80-T Series Flat Actuator Toggle Switch

Brand
Scroll Down for Pricing Options

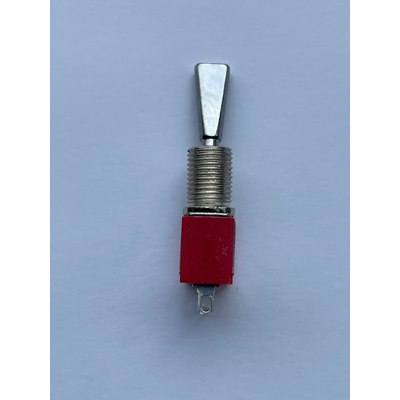

Salecom T80-T Series miniature toggle switch with 11.43mm Flat Actuator

Part No: T8013-UHBQ-H-Z33

Rating: 5A 120VAC/28VDC 3A 250VAC

Dielectric Strength: 1500V RMS

Temperature range: -30° to +85°C.

Insulation resistance: >1000MΩ

Contact resistance: <10mΩ maximum initial

Electrical life: 50,000 make/break cycles at full load

Case material: Diallyl phthalate (DAP)

Contact material: Coin silver, silver plated

Panel cut-out: 6.35mm

Flatted Toggle: U = 11.43mm

Bushing: H = 8.00mm

Termination: B = Solder Lug

Contact Material: Q = Silver Plated

UL approved.

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Request Lead Time
Price Each Exc. VAT (Inc. VAT)
Stock Qty: 261

Product Specifications

Specification 800-223
Description
SPDT on-none-on
Manuf. Part No.
T8013-UHBQ-H-Z33
