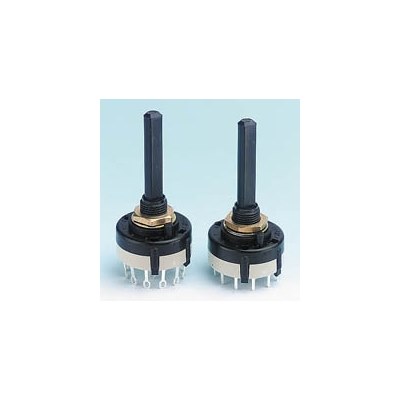

Rotary switch 2P 6W PCB CK1045
by Lorlin
CK Series
Rotary switch available in both metric and imperial sizes with solder and pcb terminals. Available with stops or as continuous rotation. Special options include UL-V0 rated material, gold and gold flash contacts. Spindle length can be requested to suit.
| number-of-wafers | Single |
|---|---|
| number-of-poles | 1, 2, 3, 4 |
| number-of-positions | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| current-rating | 1A @ 24V ac/dc |
| terminal-type | PCB, Solder |
| indexing-angle | 30°, 60°, 90° |
| switch-category | Rotary Switches |
| mounting-hole-size | 10MM |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-751 |
|---|---|
|
Lorlin List No.
|
CK1045 |
|
Description
|
2 pole 6 way PCB |
