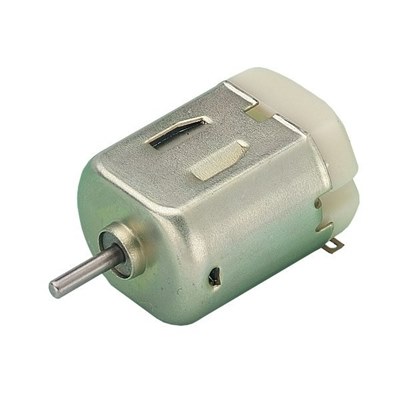

RE130 (MM10) Low torque flat DC motor

Brand
Scroll Down for Pricing Options

Miniature circular DC motor, ideal for models and educational applications.Nominal voltage 3.0V with operating range 1.5 to 4.5V. The two flat sides enable easy mounting onto a panel or PCB. Rotation is counter-clockwise (as viewed from shaft end).
Dimensions: L: 25 (exc. shaft) W:20.1 H:15.1mm. Shaft length 8.1x 2.0 dia. Weight 19g approx.

RoHS compliant

Nominal voltage: 3.0V
Operating range: 1.5-4.5V
No load speed: 16000 RPM
No load current: 0.4A
Speed at max. efficiency: 12400 RPM
Current at max. efficiency:1.5A
Torque: 11.9g-cm



View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Price Each Exc VAT (Inc VAT)

Product Specifications

Specification 450-005
Approx Weight
17 g
Model
RE130-2270-38
Operating Range
1.5-4.5V
