WAGO 855 Series DIN Rail Current Transformer; 35A
by Wago

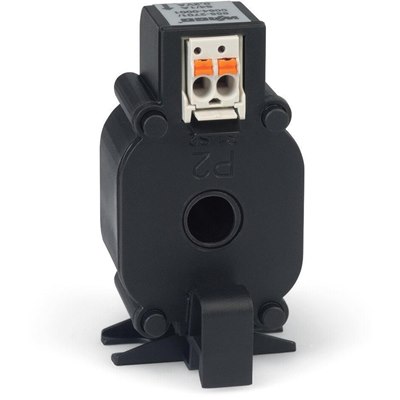

The WAGO 855-2701/035-001 35A Current Transformer (855 Series) is a compact plug-in unit designed for AC networks. With picoMAX® connection technology, slim 17.5 mm spacing, and easy DIN rail or panel mounting, it is ideal for space-restricted installations.
Features:
View product specifications
Features:
- Type: Plug-in current transformer (WAGO 855 Series)
- Primary Rated Current: 35A
- Secondary Rated Current: 1A
- Rated Power: 0.2 VA
- Accuracy Class: 1
- Connection: picoMAX® connection technology for fast, secure wiring
- Design: Slim construction for space-constrained applications
- Phase Spacing: 17.5 mm for straightforward circuit breaker adjustment
- Mounting: DIN rail or panel mounting via adapter (855-9927)
- Application: Converts 35A (or 64A with variant) to 1A for AC network measurement
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 855-2701-035-001 |
|---|---|
|
Type:
|
855-2701/035-001 |
