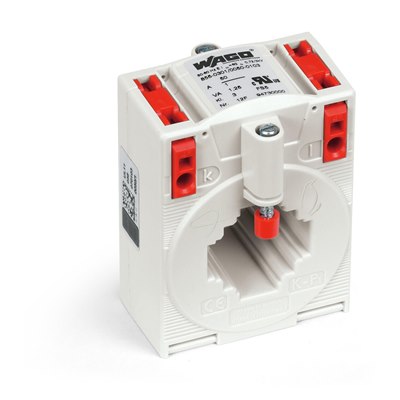

WAGO 855 Series DIN Rail Current Transformer; 150A
by Wago
The WAGO 855-305/150/501 150A Current Transformer (855 Series) is a plug-in, inductive single-conductor transformer designed for AC networks. Featuring screwless CAGE CLAMP® connections, high accuracy class 1 rating, and robust shock resistance, it delivers reliable performance in demanding environments.
Features:
View product specifications
Features:
- Type: Plug-in current transformer (WAGO 855 Series)
- Primary Rated Current: 150A
- Secondary Rated Current: 5A
- Rated Power: 5 VA
- Accuracy Class: 1
- Connection: Screwless CAGE CLAMP® technology for quick, secure wiring
- Mounting: Multiple installation options available
- Durability: Vibration- and shock-resistant with high retention forces
- Performance: Handles continuous overloads up to 120% of nominal current
- Safety: Low-voltage transformer for operation up to 1.2 kV
- Compliance: Suitable for 690 V power networks, UL recognised
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 855-305-150-501 |
|---|---|
|
Type:
|
855-305/150-501 |
