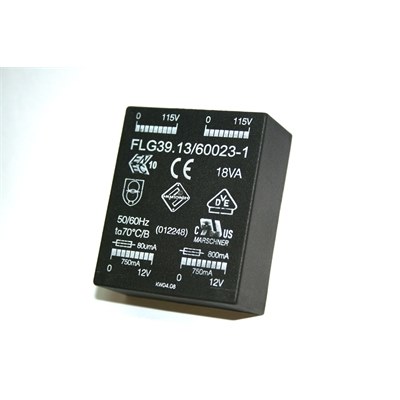

Encapsulated Low Profile EN61558 Transformers
A range of approved low-profile transformers with twin 115V+115V primaries. These units are designed, tested approved and certified to VDE-0570, EN61558/ENEC10, UL506/CSA, and CE marked. The vacuum casting construction is based on twin double section bobbins (4 coil structure) providing maximum isolation (5kV primary to secondary isolation), and achieves a low interwinding capacitance. Temperature class 70°.
View product specifications
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Per Unit (£)
1+
10+
50+
Add to basket
Order Code:
Description:
L/P transformer 115V+115V 4VA 6V+6V
L/P transformer 115V+115V 4VA 6V+6V
£6.660
£5.990
£5.330
1+ @ £6.660
10+ @ £5.990
50+ @ £5.330
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 4VA 9V+9V
L/P transformer 115V+115V 4VA 9V+9V
£7.140
£6.430
£5.710
1+ @ £7.140
10+ @ £6.430
50+ @ £5.710
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 4VA 12V+12V
L/P transformer 115V+115V 4VA 12V+12V
£7.140
£6.430
£5.710
1+ @ £7.140
10+ @ £6.430
50+ @ £5.710
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 6VA 9V+9V
L/P transformer 115V+115V 6VA 9V+9V
£7.500
£6.750
£6.000
1+ @ £7.500
10+ @ £6.750
50+ @ £6.000
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 6VA 12V+12V
L/P transformer 115V+115V 6VA 12V+12V
£7.500
£6.750
£6.000
1+ @ £7.500
10+ @ £6.750
50+ @ £6.000
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 6VA 15V+15V
L/P transformer 115V+115V 6VA 15V+15V
£7.500
£6.750
£6.000
1+ @ £7.500
10+ @ £6.750
50+ @ £6.000
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 6V+6V
L/P transformer 115V+115V 10VA 6V+6V
£8.740
£7.870
£6.990
1+ @ £8.740
10+ @ £7.870
50+ @ £6.990
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 9V+9V
L/P transformer 115V+115V 10VA 9V+9V
£8.740
£7.870
£6.990
1+ @ £8.740
10+ @ £7.870
50+ @ £6.990
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 12V+12V
L/P transformer 115V+115V 10VA 12V+12V
£8.760
£7.880
£7.010
1+ @ £8.760
10+ @ £7.880
50+ @ £7.010
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 15V+15V
L/P transformer 115V+115V 10VA 15V+15V
£8.760
£7.880
£7.010
1+ @ £8.760
10+ @ £7.880
50+ @ £7.010
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 18V+18V
L/P transformer 115V+115V 10VA 18V+18V
£9.680
£8.710
£7.740
1+ @ £9.680
10+ @ £8.710
50+ @ £7.740
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 6V+6V
L/P transformer 115V+115V 10VA 6V+6V
£8.980
£8.060
£7.170
1+ @ £8.980
10+ @ £8.060
50+ @ £7.170
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 9V+9V
L/P transformer 115V+115V 10VA 9V+9V
£9.460
£8.510
£7.570
1+ @ £9.460
10+ @ £8.510
50+ @ £7.570
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 12V+12V
L/P transformer 115V+115V 10VA 12V+12V
£9.460
£8.510
£7.570
1+ @ £9.460
10+ @ £8.510
50+ @ £7.570
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 10VA 15V+15V
L/P transformer 115V+115V 10VA 15V+15V
£10.760
£9.680
£8.610
1+ @ £10.760
10+ @ £9.680
50+ @ £8.610
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 14VA 6V+6V
L/P transformer 115V+115V 14VA 6V+6V
£9.900
£8.910
£7.920
1+ @ £9.900
10+ @ £8.910
50+ @ £7.920
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 14VA 9V+9V
L/P transformer 115V+115V 14VA 9V+9V
£9.900
£8.910
£7.920
1+ @ £9.900
10+ @ £8.910
50+ @ £7.920
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 14VA 12V+12V
L/P transformer 115V+115V 14VA 12V+12V
£9.900
£8.910
£7.920
1+ @ £9.900
10+ @ £8.910
50+ @ £7.920
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 14VA 15V+15V
L/P transformer 115V+115V 14VA 15V+15V
£11.280
£10.150
£9.020
1+ @ £11.280
10+ @ £10.150
50+ @ £9.020
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 14VA 18V+18V
L/P transformer 115V+115V 14VA 18V+18V
£11.280
£10.150
£9.020
1+ @ £11.280
10+ @ £10.150
50+ @ £9.020
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 18VA 6V+6V
L/P transformer 115V+115V 18VA 6V+6V
£10.240
£9.220
£8.190
1+ @ £10.240
10+ @ £9.220
50+ @ £8.190
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 18VA 9V+9V
L/P transformer 115V+115V 18VA 9V+9V
£10.240
£9.220
£8.190
1+ @ £10.240
10+ @ £9.220
50+ @ £8.190
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 18VA 12V+12V
L/P transformer 115V+115V 18VA 12V+12V
£10.240
£9.220
£8.190
1+ @ £10.240
10+ @ £9.220
50+ @ £8.190
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 18VA 15V+15V
L/P transformer 115V+115V 18VA 15V+15V
£10.240
£9.220
£8.190
1+ @ £10.240
10+ @ £9.220
50+ @ £8.190
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 24VA 6V+6V
L/P transformer 115V+115V 24VA 6V+6V
£13.880
£12.490
£11.100
1+ @ £13.880
10+ @ £12.490
50+ @ £11.100
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 24VA 9V+9V
L/P transformer 115V+115V 24VA 9V+9V
£11.960
£10.760
£9.570
1+ @ £11.960
10+ @ £10.760
50+ @ £9.570
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 24VA 12V+12V
L/P transformer 115V+115V 24VA 12V+12V
£11.960
£10.760
£9.570
1+ @ £11.960
10+ @ £10.760
50+ @ £9.570
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 24VA 15V+15V
L/P transformer 115V+115V 24VA 15V+15V
£11.960
£10.760
£9.570
1+ @ £11.960
10+ @ £10.760
50+ @ £9.570
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 24VA 18V+18V
L/P transformer 115V+115V 24VA 18V+18V
£11.960
£10.760
£9.570
1+ @ £11.960
10+ @ £10.760
50+ @ £9.570
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 24VA 24V+24V
L/P transformer 115V+115V 24VA 24V+24V
£11.960
£10.760
£9.570
1+ @ £11.960
10+ @ £10.760
50+ @ £9.570
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 30VA 6V+6V
L/P transformer 115V+115V 30VA 6V+6V
£15.660
£14.090
£12.530
1+ @ £15.660
10+ @ £14.090
50+ @ £12.530
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 30VA 9V+9V
L/P transformer 115V+115V 30VA 9V+9V
£15.660
£14.090
£12.530
1+ @ £15.660
10+ @ £14.090
50+ @ £12.530
hide price breaks
view price breaks
Order Code:
Description:
L/P transformer 115V+115V 30VA 12V+12V
L/P transformer 115V+115V 30VA 12V+12V
£15.660
£14.090
£12.530
1+ @ £15.660
10+ @ £14.090
50+ @ £12.530
hide price breaks
view price breaks
Product Specifications
| Specification | 835-818 | 835-820 | 835-822 | 835-826 | 835-828 | 835-830 | 835-836 | 835-838 | 835-840 | 835-842 | 835-844 | 835-846 | 835-848 | 835-850 | 835-852 | 835-858 | 835-860 | 835-862 | 835-864 | 835-868 | 835-870 | 835-872 | 835-874 | 835-876 | 835-880 | 835-882 | 835-884 | 835-886 | 835-888 | 835-890 | 835-892 | 835-894 | 835-896 | 835-898 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Output Current
|
2 x 0.33A | 2 x 0.22A | 2 x 0.165A | 2 x 0.33A | 2 x 0.25A | 2 x 0.2A | 0.75A | 0.5A | 0.375A | 0.3A | 0.25A | 2 x 0.83A | 2 x 0.55A | 2 x 0.42A | 2 x 0.335A | 2 x 1.16A | 2 x 0.77A | 2 x 0.58A | 2 x 0.46A | 2 x 0.38A | 2 x 1.5A | 2 x 1A | 2 x 0.75A | 2 x 0.6A | 2 x 2.0A | 2 x 1.33A | 2 x 1.0A | 2 x 0.8A | 2 x 0.66A | 2 x 0.5A | 2 x 2.5A | 2 x 1.66A | 2 x 1.25A | 2 x 1.0A |
|
Secondary Voltage
|
0-6V, 0-6V | 0-9V, 0-9V | 0-12V, 0-12V | 0-9V, 0-9V | 0-12V, 0-12V | 0-15V, 0-15V | 0-6V, 0-6V | 0-9V, 0-9V | 0-12V, 0-12V | 0-15V, 0-15V | 0-18V, 0-18V | 0-6V, 0-6V | 0-9V, 0-9V | 0-12V, 0-12V | 0-15V, 0-15V | 0-6V, 0-6V | 0-9V, 0-9V | 0-12V, 0-12V | 0-15V, 0-15V | 0-18V, 0-18V | 0-6V, 0-6V | 0-9V, 0-9V | 0-12V, 0-12V | 0-15V, 0-15V | 0-6V, 0-6V | 0-9V, 0-9V | 0-12V, 0-12V | 0-15V, 0-15V | 0-18V, 0-18V | 0-24V, 0-24V | 0-6V, 0-6V | 0-9V, 0-9V | 0-12V, 0-12V | 0-15V, 0-15V |
