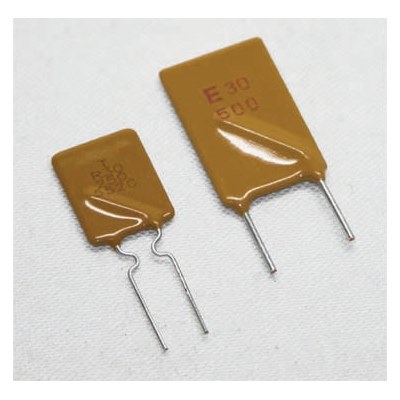

Hitano Resettable fuses - RDL60V Series 60v

Brand
Scroll Down for Pricing Options

Resettable overcurrent circuit protection for a wide range of equipment. The fuses are reset by removing the supply voltage and fault condition. Temp. range -40°C to +85°C. Max. current 40A.

Lead wire diameter 0.51mm.

RoHS compliant

Order
code
I hold
(A)
Dim. A
max.
Dim. B
max.
Dim. C
(±0.7mm)
Dim. D
min.
Dim. E
max
Raychem
cross-ref.
670-0020.107.412.75.17.63.1RXE010
670-0040.177.412.75.17.63.1RXE017
670-0060.207.412.75.17.63.1RXE020
670-0080.257.412.75.17.63.1RXE025
670-0100.307.413.45.17.63.1RXE030
670-0120.407.613.75.17.63.1RXE040
670-0140.507.913.75.17.63.1RXE050
670-0160.659.715.25.17.63.1RXE065
670-0180.7510.416.05.17.63.1RXE075
670-0200.9011.716.75.17.63.1RXE090
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 670-002 670-004 670-006 670-008 670-010 670-012 670-014 670-016 670-018 670-020
Hitano model
RDL60V101 RDL60V017 RDL60V020 RDL60V025 RDL60V030 RDL60V040 RDL60V050 RDL60V065 RDL60V075 RDL60V090
Hold Current
0.1A 0.17A 0.2A 0.25A 0.3A 0.4A 0.5A 0.65A 0.75A 0.9A
Trip Current
0.2A 0.34A 0.4A 0.5A 0.6A 0.8A 1.0A 1.3A 1.5A 1.8A
Rated Voltage
60V 60V 60V 60V 60V 60V 60V 60V 60V 60V
