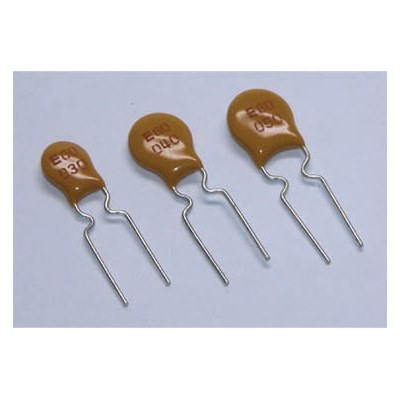

Reset. fuse 30V 1.1A
Roll over or select images to enlarge

Hitano Resettable fuses - RDL30V Series 30v

Brand
Scroll Down for Pricing Options

Resettable PPTC (Polymeric Positive Temperature Coefficient) devices providing overcurrent circuit protection for a wide range of equipment. The fuses are reset by removing the supply voltage and fault condition. Temp. range -40°C to +85°C. Rated voltage 30V. Max. current 40A.

RoHS compliant

Order
code
I hold
(A)
PackageDim. A
max.
Dim. B
max.
Dim. C
(±0.7mm)
Dim. D
min.
Dim. E
max
Lead
dia.
Raychem
cross-ref
670-0301.117.414.25.17.63.00.51RUE110
670-0321.3518.913.55.17.63.00.51RUE135
670-0341.618.915.25.17.63.00.51RUE160
670-0361.85110.215.75.17.63.00.51RUE185
670-0382.5111.418.35.17.63.00.51RUE250
670-0403.0211.417.35.17.63.00.81RUE300
670-0424.0214.020.15.17.63.00.81RUE400
670-0445.0214.024.95.17.63.00.81RUE500
670-0466.0216.524.95.17.63.00.81RUE600
670-0487.0219.126.75.17.63.00.81RUE700
670-0508.0221.629.25.17.63.00.81RUE800
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 670-030 670-032 670-034 670-036 670-038 670-040 670-042 670-044 670-046 670-048 670-050
Hitano model
RDL30V110 RDL30V135 RDL30V160 RDL30V185 RDL30V250 RDL30V300 RDL30V400 RDL30V500 RDL30V600 RDL30V700 RDL30V800
Hold Current
1.1A 1.35A 1.6A 1.85A 2.5A 3.0A 4.0A 5.0A 6.0A 7.0A 8.0A
Trip Current
2.2A 2.7A 3.2A 3.7A 5.0A 6.0A 8.0A 10.0A 12.0A 14.0A 16.0A
Rated Voltage
30V 30V 30V 30V 30V 30V 30V 30V 30V 30V 30V
