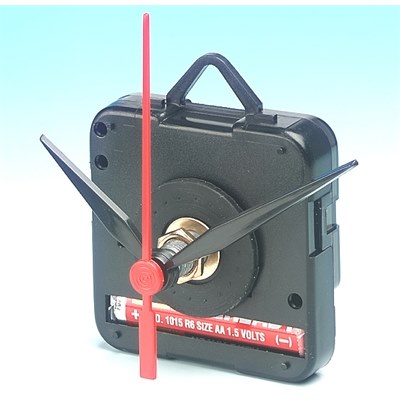

A precision quartz clock movement which can used to build your own personalised clock or to replace defective units.
Complete with hands the unit is self-starting, maintenance free and long stability.
Easy to mount with centre fixing (hardware supplied), and integral hanger.
The unit is supplied complete with hour, minute and second hands.
Requires one AA size battery (not included) for up to 2 years running.
CE approved

Temperature range: -10°C to +60°C
Crystal frequency: 32.768 KHz
Operating voltage: 1.2 V to 1.7 V
Median current consumption: 130µA @ 1.5 V
Median running time: 2 years
Dimensions (mm): 56W x 56H x 16.2D (not including mounting boss and hand pivots)
Shaft length: 18.5mm
Second hand: 75mm
Minute hand: 60mm
Hour hand: 42mm
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 378-006
Description
Quartz clock movement with hands
