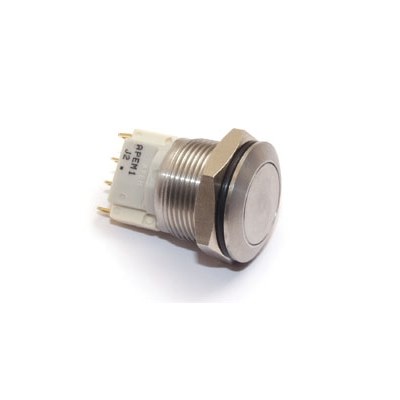

Vandal Resistant 19mm SPNO/SPNC switch

Brand
Scroll Down for Pricing Options

Low profile flush mounting push switch, utilising a micro-limit switch
and sealed to IP66 for use in harsh environments.
Stainless steel construction. Single pole NO/NC gold plated contacts,
with double-break snap action coilspring mechanism. Flat plunger.

Rating: 5A max. resistive @ 250VAC/30VDC
Contact resistance:<10mΩ
Insulation resistance:>1000MΩ @ 500VDC
Temp. range:-20° to +85°C
Dims:19.0 dia. x 29.5 H
Panel Cutout: 19.2mm.
Max panel thicknes:6mm

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 800-542
Description
19mm Switch SPNO/SPNC. AV19LP407
