APEM AV Series Vandal Resistant 22mm switch

Brand
Scroll Down for Pricing Options

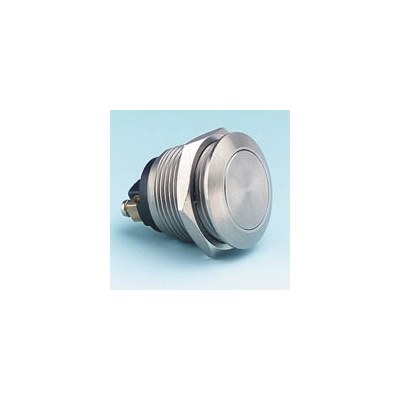

Vandal Resistant Switch - Flat buttonAV091003A940
Roll over or select images to enlarge

APEM AV Series Vandal Resistant 22mm switch

Brand
Scroll Down for Pricing Options

Low profile vandal resistant security switch.
SPNO momentary action. Nickel plated brass body and plunger, silver plated brass contacts.
Through panel mounting. Screw terminals.
Available with either flat or curved (dome) plunger.

Rating: 2A max. resistive 48V DC
Contact resistance: <10mΩ
Insulation resistance: >1000MΩ 500V DC
Operating life:>100,000 cycles full load.
Dims: 22.0 dia x 24mm H.
Panel cutout:19.2mm
Max panel thickness:10.5mm

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 800-540 800-541
Description
22mm switch - Flat button. Apem AV091003A940 22mm switch - Curved button. Apem AV191003A940
