Salecom TS40-T Series Subminiature Toggle Switch

Brand
Scroll Down for Pricing Options

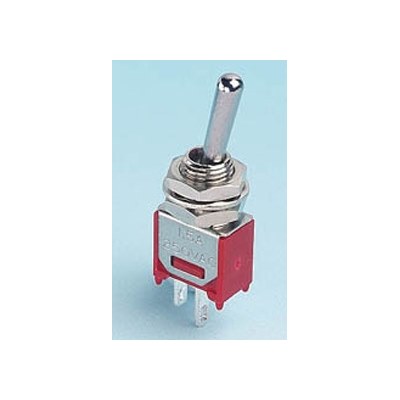

Subminiature SPST toggleswitch on-off    TS4(2P)SEBQ
Roll over or select images to enlarge

Salecom TS40-T Series Subminiature Toggle Switch

Brand
Scroll Down for Pricing Options
Rating: 3A 120VAC/28VDC 1.5A 250VAC
Dielectric strength: 1000V RMS
Temperature range: -30° to +85°C
Insulation resistance: >1000MΩ
Contact resistance: <20mΩ maximum initial @ 2-4VDC 100 mA
Electrical life: 30,000 make/break cycles at full load
Case material: Diallyl phthalate (DAP)
Contact material: Coin silver, silver plated

Dimensions: SPST/SPDT:
Height: 8.64mm Width: 8.13mm Depth: 5.08mm
DPDT:
Height: 8.64mm Width: 8.13mm Depth: 9.14mm

Salecom TS40-T series. UL approved
RoHS Compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 800-205 800-210 800-215
Manufacturer Ref.
TS4(2P)-SEBQ-H TS4-SEBQ-H TS5-SEBQ-H
Description
SPST SPDT DPDT
