Hartmann Binary Coded Sealed Rotary Switch

Brand
Scroll Down for Pricing Options

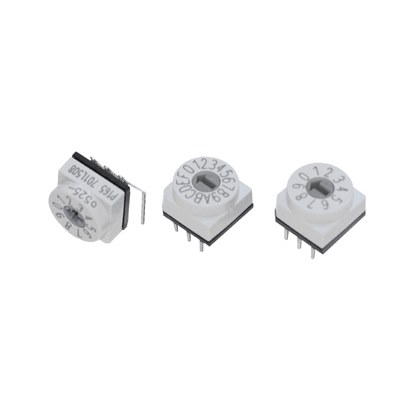

Binary Switch BCD Horiz.(10 pos)PT65-101
Roll over or select images to enlarge

Hartmann Binary Coded Sealed Rotary Switch

Brand
Scroll Down for Pricing Options

Binary coded miniature PCB mounting rotary switches, with gold contacts and terminals.
Horizontal or vertical right-angle mounting, with screwdriver adjustment, fully sealed
and board washable. Available BCD code (10 positions, 0-9) and HEX code (16 positions, 0-9, A-F).

Contact rating: 150mA 24VDC switching.
Contact resistance: <80mW
Operating life: >10,000 operations
Operating temp: -20°C to +70°C
Dimensions: 10mm L x 10mm W x 6.5mm H

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)

Product Specifications

Specification 800-651 800-652 800-653 800-654
Description
BCD Code Horizontal (10 pos) Hex Code Horizontal (16 pos) BCD Code Vertical (10 pos) Hex Code Vertical (16 pos)
