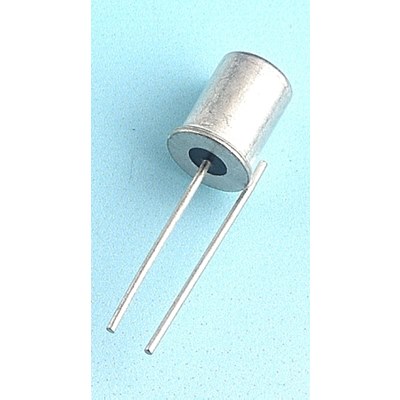

Comus ASLS Series Linear Acceleration Switches
A normally open spring loaded contact switch housed in a sealed case. The contact will close under conditions of shock or acceleration in excess of activation level. As the activation level decreases the contact will open again. Available in two versions, 2-4.9G and 5 to-9.9G. Case material gold-plated steel. Dimensions 6.8 x 4.6mm
Comus types ASLS-2 & ASLS-5
RoHS compliant
| ASLS-2 | ASLS-5 | |
| Activation level: | 2.0-4.9G | 5.0-9.9G |
| Contact resistance: | 10W max. | 10W max. |
| Switching voltage: | 24Vdc max. | 24Vdc max. |
| Switching current: | 0.25A max. | 0.25A max. |
| Switching capacity: | 5VA max. (resistive) | 5VA max. (resistive) |
| Operating temp: | -20°C to +85°C | -20°C to +85°C |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-523 | 800-524 |
|---|---|---|
|
Description
|
Linear Acceleration Switch | Linear Acceleration Switch |
|
Type
|
ASLS-5 | ASLS-2 |
