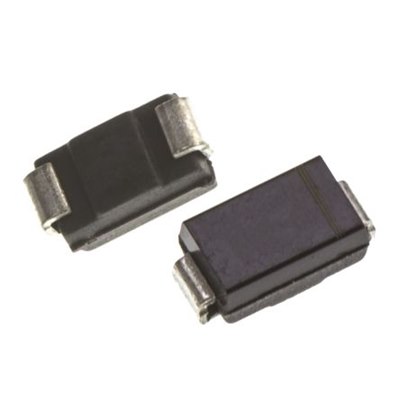

S1K 1A 800V SMT Rectifier
A range of rectifier diodes from HY & CDIL
FEATURES
● Reverse Voltage - 50 to 1000V
● Forward Current - 1.0A
● Glass Passivated chip
● For surface mounted applications
● Low reverse leakage current
● Low forward voltage drop
● High current capability
● Plastic material has UL flammability
classification 94V-0
MECHANICAL DATA
● Case： Molded Plastic
● Polarity: lndicated by cathode band
● Weight: 0.002 ounces,0.053 grams
● Mounting position: Any
View product specifications
FEATURES
● Reverse Voltage - 50 to 1000V
● Forward Current - 1.0A
● Glass Passivated chip
● For surface mounted applications
● Low reverse leakage current
● Low forward voltage drop
● High current capability
● Plastic material has UL flammability
classification 94V-0
MECHANICAL DATA
● Case： Molded Plastic
● Polarity: lndicated by cathode band
● Weight: 0.002 ounces,0.053 grams
● Mounting position: Any
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 160-506 |
|---|---|
|
Description
|
S1K 1A 800V SMT Rectifier Diode |
