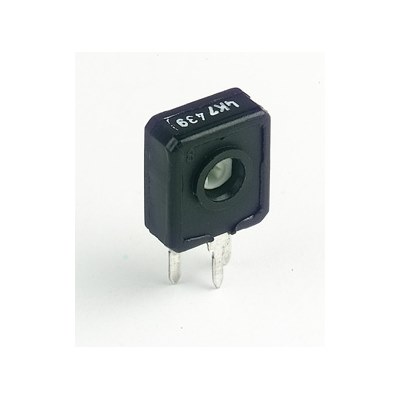

PNZ11Z Vertical 47K PNZ11Z47K

As a single turn trimming potentiometer, the Iskra PNZ11Z vertical type is designed to measure and test the electrical potential of different devices. This could range from audio equipment such as headphones, to industrial tools such as a power drill or compressor.

The rectangular outline of the Iskra PNZ11Z vertical type makes it suitable for use in automatic insertion machines, while the fully enclosed shape removes all traces of dust and moisture. This means that the product can perform to a high degree of accuracy.

The Iskra PNZ11Z is adjustable from both sides

The pinout is compatible with the ACP CA9 series

• Power Rating: 0.15W
• Resistance tolerance: 2%
• Limiting element voltage: 200V
• Temperature coefficient: 1000ppm°C
• ROHS compliant
• **Available Until Stock Exhausted**
• Please see alternatives here
