Apem Q8 Series 5mm LED Indicators

Brand
Scroll Down for Pricing Options

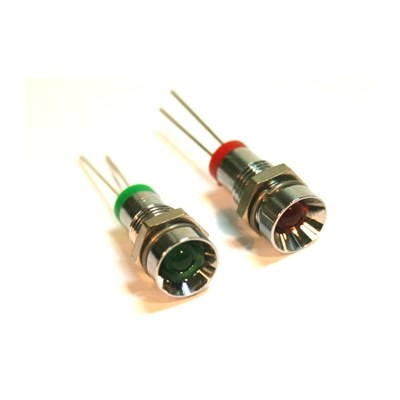

A range of panel indicators incorporating 5mm LEDs within high quality brass bezels. Available with polished chromium plated recessed style finish. Bezel diameter 9.5mm. Mounting hole 8mm. Thread M8 x 0.75. Supplied with fixing nut & spring washer.

Operating current: 20mA
Operating voltage: 1.8VDC min. to 2.5VDC max.
Max. reverse voltage: 5V
Int. mcd @20mA: HE Red - 50mcd. Green, Yellow - 40mcd.

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 852-925 852-926 852-927
Description
Q8R6CXXR02 5mm HE Red Recessed Chrome Indicator Q8R6CXXG02 5mm Green Recessed Chrome Indicator Q8R6CXXY02 5mm HE Yellow Recessed Chrome Indicator
