Push-on blade terminals

Brand
Scroll Down for Pricing Options
Pack 100 push-on blade 20A Yellow 6.3x0.8
Roll over or select images to enlarge

Push-on blade terminals

Brand
Scroll Down for Pricing Options
Insulated push-on blade terminals with easy cable entry guide which eliminates flared wire strands during cable insertion. Copper terminals to BS6017 with bright electrotinned finish to BS1872, which prevents oxidisation. Insulators are coloured vinyl. All terminals are UL & CSA approved and have full compliance to BS4579.
Current ratings quoted are at 415V AC @ 32°C.

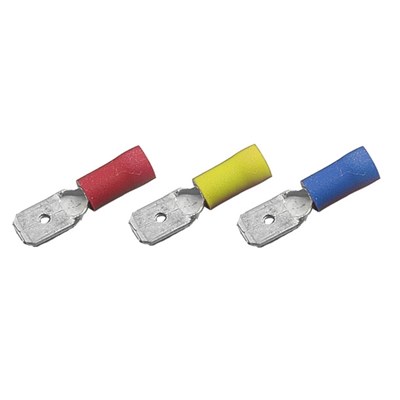

Insulation Colour:

Red - Wire size 0.25-1.65 mm² (AWG22-16)
Blue - Wire size 1.04-2.63 mm² (AWG16-14)
Yellow - Wire size 2.63-6.64 mm² (AWG12-10)

All Crimp Terminals supplied in packs of 100

RoHS compliant



**** DAVICO TERMINALS ARE AVAILABLE ONLY UNTIL STOCKS EXHAUSTED ****

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 707-157
Tab Size (mm)
6.3x0.8
Type
Yellow - 20 Amp
