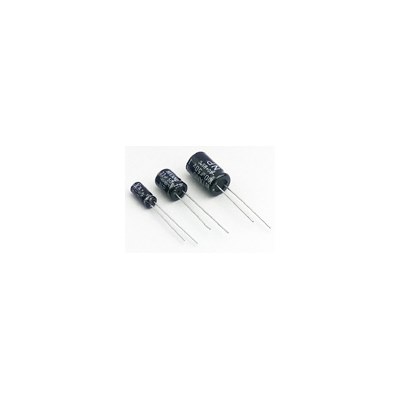

ENR Non-polarised 4.7uF 50V
by Hitano
Introduction
1. These are non-polar capacitors designed for circuits with reversing polarity.
2. Tolerance of ± 10% (K) if required can also be available on request.
3. Life time 105℃ 1000 Hours.
General specifications
Minimum order quantity 10pcs.
View product specifications
1. These are non-polar capacitors designed for circuits with reversing polarity.
2. Tolerance of ± 10% (K) if required can also be available on request.
3. Life time 105℃ 1000 Hours.
General specifications
- Capacitance Range 0.47uF to 1000uF
- Rated Working Voltage 10Vdc to 100Vdc
- Load Life 1000Hrs @105℃
- Operating Temp. Range -40℃ to +105℃
- Capacitance Tolerance ±20%
- Packaging Bulk - Tape/Box, Tape/Reel to order
Minimum order quantity 10pcs.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 100-696 |
|---|---|
|
Lead dia (mm)
|
0.5 |
|
Case Size DxL (mm)
|
5x11 |
|
Voltage
|
50V |
|
Value
|
4.7µF |
|
Lead Pitch P (mm)
|
2.0 |
