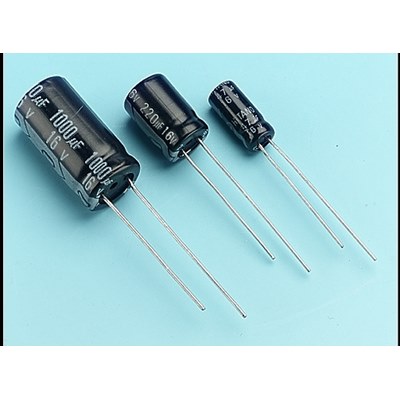

EHR 22uF/25V (EHR220M25)
by Hitano
High temperature radial lead electrolytic capacitors suitable for communications equipment,
switching regulators, and various industrial applications.
| Load life @105°: | >2000 hrs. |
| Temperature range: | -40 to +105°C |
| Capacitance tolerance: | ±20% at 20°C, 120Hz |
| Leakage current: | I =>0.01CV or 3µA whichever greater |
| Dissipation factor: | 16V: 0.16 35V: 0.12 |
| Ripple current: | As per table, measured at 120Hz 102°C |
| Lead wire diameter: | 0.5mm (Case ø5/6mm) 0.6mm (Case ø8/10/13mm) |
Hitano EHR series *Available taped & reeled to special order
RoHS compliant
Minimum order quantity 10pcs.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 100-661 |
|---|---|
|
Lead pitch P (mm)
|
2.0 |
|
Case size DxL (mm)
|
5x11 |
|
Voltage
|
25V |
|
Ripple Max.
|
61mA |
|
Value
|
22uF |
