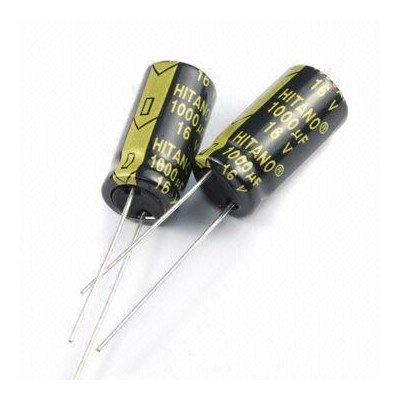

Hitano Electrolytic - EXR Low Impedance 105°
These electrolytic capacitor are ideally suited for use in switching power supplies
and other high frequency applications.
| Temperature range: | -55°C to +105°C |
| Load life@ 105°C: | >2000 hrs. |
| Capacitance tolerance: | ±20% |
| Leakage current: | I = 0.01CV or 3µA whichever is greater |
Ripple current values @ 100KHz @105°C
Impedance Ω values @ 100KHz @ 20°C
Capacitance (µF) | Voltage | Impedance Ω | Ripple current (mA) |
100 | 16 | 0.65 | 180 |
220 | 16 | 0.25 | 450 |
470 | 16 | 0.12 | 587 |
1000 | 16 | 0.068 | 1050 |
2200 | 16 | 0.039 | 1660 |
4700 | 16 | 0.022 | 2150 |
100 | 25 | 0.25 | 295 |
220 | 25 | 0.15 | 555 |
330 | 25 | 0.12 | 700 |
470 | 25 | 0.09 | 760 |
1000 | 25 | 0.052 | 1220 |
2200 | 25 | 0.03 | 1950 |
47 | 35 | 0.65 | 180 |
100 | 35 | 0.25 | 295 |
220 | 35 | 0.15 | 555 |
330 | 35 | 0.079 | 1050 |
470 | 35 | 0.068 | 1050 |
1000 | 35 | 0.039 | 1660 |
2200 | 35 | 0.022 | 2150 |
10 | 50 | 2.0 | 110 |
22 | 50 | 1.25 | 150 |
33 | 50 | 0.80 | 250 |
47 | 50 | 0.74 | 220 |
100 | 50 | 0.35 | 469 |
220 | 50 | 0.21 | 796 |
470 | 50 | 0.10 | 1365 |
1000 | 50 | 0.053 | 2408 |
2200 | 50 | 0.032 | 3070 |
* Hitano EXR series. *Available taped & reeled to special order
RoHS compliant
Minimum order quantity 10pcs.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Each Exc VAT (Inc VAT)
1+
100+
1000+
Add to basket
Request Lead Time
Order Code:
Description:
EXR 100uF 16V (EXR101M16)
EXR 100uF 16V (EXR101M16)
£0.070
(£0.084)
£0.041
(£0.049)
£0.028
(£0.034)
Price Each Exc VAT (Inc VAT)
Stock Qty: 1989
1+ @ £0.070
(£0.084)
100+ @ £0.041
(£0.049)
1000+ @ £0.028
(£0.034)
hide price breaks
view price breaks
Stock Qty: 1989
Order Code:
Description:
EXR 220uF 16V (EXR221M16)
EXR 220uF 16V (EXR221M16)
£0.093
(£0.112)
£0.058
(£0.070)
£0.041
(£0.049)
Price Each Exc VAT (Inc VAT)
Stock Qty: 4181
1+ @ £0.093
(£0.112)
100+ @ £0.058
(£0.070)
1000+ @ £0.041
(£0.049)
hide price breaks
view price breaks
Stock Qty: 4181
Order Code:
Description:
EXR 470uF 16V (EXR471M16)
EXR 470uF 16V (EXR471M16)
£0.115
(£0.138)
£0.081
(£0.097)
£0.058
(£0.070)
Price Each Exc VAT (Inc VAT)
Stock Qty: 1045
1+ @ £0.115
(£0.138)
100+ @ £0.081
(£0.097)
1000+ @ £0.058
(£0.070)
hide price breaks
view price breaks
Stock Qty: 1045
Order Code:
Description:
EXR 1000uF 16V (EXR102M16)
EXR 1000uF 16V (EXR102M16)
£0.174
(£0.209)
£0.110
(£0.132)
£0.081
(£0.097)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.174
(£0.209)
100+ @ £0.110
(£0.132)
1000+ @ £0.081
(£0.097)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 2200uF 16V (EXR222M16)
EXR 2200uF 16V (EXR222M16)
£0.301
(£0.361)
£0.214
(£0.257)
£0.162
(£0.194)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.301
(£0.361)
100+ @ £0.214
(£0.257)
1000+ @ £0.162
(£0.194)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 4700uF 16V (EXR472M16)
EXR 4700uF 16V (EXR472M16)
£0.672
(£0.806)
£0.417
(£0.500)
£0.324
(£0.389)
Price Each Exc VAT (Inc VAT)
Stock Qty: 124
1+ @ £0.672
(£0.806)
100+ @ £0.417
(£0.500)
1000+ @ £0.324
(£0.389)
hide price breaks
view price breaks
Stock Qty: 124
Order Code:
Description:
EXR 100uF 25V (EXR101M25)
EXR 100uF 25V (EXR101M25)
£0.081
(£0.097)
£0.043
(£0.052)
£0.030
(£0.036)
Price Each Exc VAT (Inc VAT)
Stock Qty: 2045
1+ @ £0.081
(£0.097)
100+ @ £0.043
(£0.052)
1000+ @ £0.030
(£0.036)
hide price breaks
view price breaks
Stock Qty: 2045
Order Code:
Description:
EXR 220uF 25V (EXR221M25)
EXR 220uF 25V (EXR221M25)
£0.115
(£0.138)
£0.070
(£0.084)
£0.047
(£0.056)
Price Each Exc VAT (Inc VAT)
Stock Qty: 1263
1+ @ £0.115
(£0.138)
100+ @ £0.070
(£0.084)
1000+ @ £0.047
(£0.056)
hide price breaks
view price breaks
Stock Qty: 1263
Order Code:
Description:
EXR 470uF 25V (EXR471M25)
EXR 470uF 25V (EXR471M25)
£0.174
(£0.209)
£0.105
(£0.126)
£0.075
(£0.090)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.174
(£0.209)
100+ @ £0.105
(£0.126)
1000+ @ £0.075
(£0.090)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 1000uF 25V (EXR102M25)
EXR 1000uF 25V (EXR102M25)
£0.278
(£0.334)
£0.208
(£0.250)
£0.151
(£0.181)
Price Each Exc VAT (Inc VAT)
Stock Qty: 235
1+ @ £0.278
(£0.334)
100+ @ £0.208
(£0.250)
1000+ @ £0.151
(£0.181)
hide price breaks
view price breaks
Stock Qty: 235
Order Code:
Description:
EXR 2200uF 25V (EXR222M25)
EXR 2200uF 25V (EXR222M25)
£0.545
(£0.654)
£0.417
(£0.500)
£0.290
(£0.348)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.545
(£0.654)
100+ @ £0.417
(£0.500)
1000+ @ £0.290
(£0.348)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 33uF 35V (EXR330M35)
EXR 33uF 35V (EXR330M35)
£0.070
(£0.084)
£0.035
(£0.042)
£0.025
(£0.030)
Price Each Exc VAT (Inc VAT)
Stock Qty: 8704
1+ @ £0.070
(£0.084)
100+ @ £0.035
(£0.042)
1000+ @ £0.025
(£0.030)
hide price breaks
view price breaks
Stock Qty: 8704
Order Code:
Description:
EXR 47uF 35V (EXR470M35)
EXR 47uF 35V (EXR470M35)
£0.070
(£0.084)
£0.041
(£0.049)
£0.028
(£0.034)
Price Each Exc VAT (Inc VAT)
Stock Qty: 870
1+ @ £0.070
(£0.084)
100+ @ £0.041
(£0.049)
1000+ @ £0.028
(£0.034)
hide price breaks
view price breaks
Stock Qty: 870
Order Code:
Description:
EXR 100uF 35V (EXR101M35)
EXR 100uF 35V (EXR101M35)
£0.093
(£0.112)
£0.058
(£0.070)
£0.041
(£0.049)
Price Each Exc VAT (Inc VAT)
Stock Qty: 6476
1+ @ £0.093
(£0.112)
100+ @ £0.058
(£0.070)
1000+ @ £0.041
(£0.049)
hide price breaks
view price breaks
Stock Qty: 6476
Order Code:
Description:
EXR 220uF 35V (EXR221M35)
EXR 220uF 35V (EXR221M35)
£0.162
(£0.194)
£0.093
(£0.112)
£0.063
(£0.076)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.162
(£0.194)
100+ @ £0.093
(£0.112)
1000+ @ £0.063
(£0.076)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 330uF 35V (EXR331M35)
EXR 330uF 35V (EXR331M35)
£0.185
(£0.222)
£0.115
(£0.138)
£0.081
(£0.097)
Price Each Exc VAT (Inc VAT)
Stock Qty: 479
1+ @ £0.185
(£0.222)
100+ @ £0.115
(£0.138)
1000+ @ £0.081
(£0.097)
hide price breaks
view price breaks
Stock Qty: 479
Order Code:
Description:
EXR 470uF 35V (EXR471M35)
EXR 470uF 35V (EXR471M35)
£0.208
(£0.250)
£0.139
(£0.167)
£0.105
(£0.126)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.208
(£0.250)
100+ @ £0.139
(£0.167)
1000+ @ £0.105
(£0.126)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 1000uF 35V (EXR102M35)
EXR 1000uF 35V (EXR102M35)
£0.347
(£0.416)
£0.243
(£0.292)
£0.185
(£0.222)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.347
(£0.416)
100+ @ £0.243
(£0.292)
1000+ @ £0.185
(£0.222)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 2200uF 35V (EXR222M35)
EXR 2200uF 35V (EXR222M35)
£0.602
(£0.722)
£0.417
(£0.500)
£0.347
(£0.416)
Price Each Exc VAT (Inc VAT)
Stock Qty: 570
1+ @ £0.602
(£0.722)
100+ @ £0.417
(£0.500)
1000+ @ £0.347
(£0.416)
hide price breaks
view price breaks
Stock Qty: 570
Order Code:
Description:
EXR 3300uF 35V (EXR332M35)
EXR 3300uF 35V (EXR332M35)
£0.753
(£0.904)
£0.648
(£0.778)
£0.568
(£0.682)
Price Each Exc VAT (Inc VAT)
Stock Qty: 890
1+ @ £0.753
(£0.904)
100+ @ £0.648
(£0.778)
1000+ @ £0.568
(£0.682)
hide price breaks
view price breaks
Stock Qty: 890
Order Code:
Description:
EXR 10uF 50V (EXR100M50)
EXR 10uF 50V (EXR100M50)
£0.047
(£0.056)
£0.025
(£0.030)
£0.019
(£0.023)
Price Each Exc VAT (Inc VAT)
Stock Qty: 2010
1+ @ £0.047
(£0.056)
100+ @ £0.025
(£0.030)
1000+ @ £0.019
(£0.023)
hide price breaks
view price breaks
Stock Qty: 2010
Order Code:
Description:
EXR 22uF 50V (EXR220M50)
EXR 22uF 50V (EXR220M50)
£0.070
(£0.084)
£0.041
(£0.049)
£0.028
(£0.034)
Price Each Exc VAT (Inc VAT)
Stock Qty: 835
1+ @ £0.070
(£0.084)
100+ @ £0.041
(£0.049)
1000+ @ £0.028
(£0.034)
hide price breaks
view price breaks
Stock Qty: 835
Order Code:
Description:
EXR 33uF 50V (EXR330M50)
EXR 33uF 50V (EXR330M50)
£0.070
(£0.084)
£0.041
(£0.049)
£0.028
(£0.034)
Price Each Exc VAT (Inc VAT)
Stock Qty: 6990
1+ @ £0.070
(£0.084)
100+ @ £0.041
(£0.049)
1000+ @ £0.028
(£0.034)
hide price breaks
view price breaks
Stock Qty: 6990
Order Code:
Description:
EXR 47uF 50V (EXR470M50)
EXR 47uF 50V (EXR470M50)
£0.081
(£0.097)
£0.043
(£0.052)
£0.030
(£0.036)
Price Each Exc VAT (Inc VAT)
Stock Qty: 2747
1+ @ £0.081
(£0.097)
100+ @ £0.043
(£0.052)
1000+ @ £0.030
(£0.036)
hide price breaks
view price breaks
Stock Qty: 2747
Order Code:
Description:
EXR 100uF 50V (EXR101M50)
EXR 100uF 50V (EXR101M50)
£0.115
(£0.138)
£0.081
(£0.097)
£0.058
(£0.070)
Price Each Exc VAT (Inc VAT)
Stock Qty: 632
1+ @ £0.115
(£0.138)
100+ @ £0.081
(£0.097)
1000+ @ £0.058
(£0.070)
hide price breaks
view price breaks
Stock Qty: 632
Order Code:
Description:
EXR 220uF 50V (EXR221M50)
EXR 220uF 50V (EXR221M50)
£0.185
(£0.222)
£0.115
(£0.138)
£0.081
(£0.097)
Price Each Exc VAT (Inc VAT)
Stock Qty: 1303
1+ @ £0.185
(£0.222)
100+ @ £0.115
(£0.138)
1000+ @ £0.081
(£0.097)
hide price breaks
view price breaks
Stock Qty: 1303
Order Code:
Description:
EXR 470uF 50V (EXR471M50)
EXR 470uF 50V (EXR471M50)
£0.347
(£0.416)
£0.243
(£0.292)
£0.185
(£0.222)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.347
(£0.416)
100+ @ £0.243
(£0.292)
1000+ @ £0.185
(£0.222)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 1000uF 50V (EXR102M50)
EXR 1000uF 50V (EXR102M50)
£0.602
(£0.722)
£0.440
(£0.528)
£0.313
(£0.376)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.602
(£0.722)
100+ @ £0.440
(£0.528)
1000+ @ £0.313
(£0.376)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
EXR 2200uF 50V (EXR222M50)
EXR 2200uF 50V (EXR222M50)
£1.042
(£1.250)
£0.718
(£0.862)
£0.555
(£0.666)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £1.042
(£1.250)
100+ @ £0.718
(£0.862)
1000+ @ £0.555
(£0.666)
hide price breaks
view price breaks
Stock Qty: 0
Product Specifications
| Specification | 100-720 | 100-721 | 100-723 | 100-725 | 100-727 | 100-728 | 100-732 | 100-734 | 100-736 | 100-738 | 100-740 | 100-743 | 100-744 | 100-746 | 100-748 | 100-749 | 100-750 | 100-752 | 100-754 | 100-755 | 100-756 | 100-757 | 100-758 | 100-759 | 100-760 | 100-762 | 100-764 | 100-766 | 100-767 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Lead dia (mm)
|
0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.8 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.5 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 |
|
Case Size DxL (mm)
|
6.3x11 | 8x12 | 10x12.5 | 10x21 | 13x21 | 16x31 | 6.3x11 | 8x12 | 10x16 | 13x21 | 16x26 | 6.3x11 | 6.3x11 | 8x12 | 10x16 | 10x16 | 10x21 | 13x26 | 16x31 | 16x36 | 5x11 | 6.3X11 | 6.3X11 | 6.3x11 | 10x12 | 10x21 | 13x21 | 16x26 | 18x36 |
|
Voltage
|
16V | 16V | 16V | 16V | 16V | 16V | 25V | 25V | 25V | 25V | 25V | 35V | 35V | 35V | 35V | 35V | 35V | 35V | 35V | 35V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
|
Value
|
100uF | 220uF | 470uF | 1000uF | 2200uF | 4700uF | 100uF | 220uF | 470uF | 1000uF | 2200uF | 33uF | 47uF | 100uF | 220uF | 330uF | 470uF | 1000uF | 2200uF | 3300uF | 10uF | 22uF | 33uF | 47uF | 100uF | 220uF | 470uF | 1000uF | 2200uF |
|
Lead Pitch P (mm)
|
2.5 | 3.5 | 5.0 | 5.0 | 5.0 | 7.5 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 2.5 | 2.5 | 3.5 | 5.0 | 5.0 | 5.0 | 5.0 | 7.5 | 7.5 | 2.0 | 2.5 | 2.5 | 2.5 | 5.0 | 5.0 | 5.0 | 7.5 | 7.5 |
