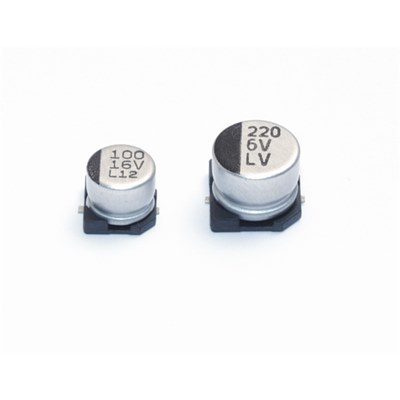

Hitano Electrolytic - ELV SMD 85° Series
85°C surface mount electrolytic capacitors. Supplied on tape for automatic placement, and designed for reflow soldering processes. Hitano ELV series N.B. Supplied only in full reel quantities as listed below. Specifications
| Load life: | >2000 hours @ 85°C |
| Temp. range: | -40°C to +85°C |
| Tolerance: | ±20% @ 20°C/120Hz |
| Leakage current: | < 0.01CV or 3µA whichever greater |
Dimensions (See PDF datasheet)
Case Size | DØ | L | A & C | B | W | P |
A | 4.0 | 5.5 | 4.3 | 5.1 | 0.5-0.8 | 1.0 |
B | 5.0 | 5.5 | 5.3 | 5.9 | 0.5-0.8 | 1.4 |
C | 6.3 | 5.5 | 6.6 | 7.2 | 0.5-0.8 | 2.0 |
C8 | 6.3 | 7.7 | 6.6 | 7.2 | 0.5-0.8 | 2.0 |
D | 8.0 | 6.5 | 8.3 | 9.0 | 0.5-0.8 | 2.2 |
E | 8.0 | 10.5 | 8.3 | 9.0 | 0.8-1.1 | 3.1 |
F | 10.0 | 10.5 | 10.3 | 11.0 | 0.8-1.1 | 4.5 |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Per Reel Exc VAT (Inc VAT)
1+
5+
10+
Add to basket
Request Lead Time
Order Code:
Description:
ELV CAP SMD 1000uF/10V Reel x 500
ELV CAP SMD 1000uF/10V Reel x 500
£92.950
(£111.540)
£83.500
(£100.200)
£75.400
(£90.480)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £92.950
(£111.540)
5+ @ £83.500
(£100.200)
10+ @ £75.400
(£90.480)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
ELV CAP SMD 1.0uF/50V Reel x 2000
ELV CAP SMD 1.0uF/50V Reel x 2000
£64.554
(£77.465)
£57.876
(£69.451)
£49.195
(£59.034)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 5
1+ @ £64.554
(£77.465)
5+ @ £57.876
(£69.451)
10+ @ £49.195
(£59.034)
hide price breaks
view price breaks
Stock Qty: 5
Order Code:
Description:
ELV CAP SMD 2.2uF/50V Reel x 2000
ELV CAP SMD 2.2uF/50V Reel x 2000
£64.554
(£77.465)
£57.876
(£69.451)
£49.195
(£59.034)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 3
1+ @ £64.554
(£77.465)
5+ @ £57.876
(£69.451)
10+ @ £49.195
(£59.034)
hide price breaks
view price breaks
Stock Qty: 3
Order Code:
Description:
ELV CAP SMD 4.7uF/50V Reel x 2000
ELV CAP SMD 4.7uF/50V Reel x 2000
£64.554
(£77.465)
£57.876
(£69.451)
£49.195
(£59.034)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 2
1+ @ £64.554
(£77.465)
5+ @ £57.876
(£69.451)
10+ @ £49.195
(£59.034)
hide price breaks
view price breaks
Stock Qty: 2
Order Code:
Description:
ELV CAP SMD 10uF/16V Reel x 2000
ELV CAP SMD 10uF/16V Reel x 2000
£71.500
(£85.800)
£66.350
(£79.620)
£63.500
(£76.200)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 3
1+ @ £71.500
(£85.800)
5+ @ £66.350
(£79.620)
10+ @ £63.500
(£76.200)
hide price breaks
view price breaks
Stock Qty: 3
Order Code:
Description:
ELV CAP SMD 10uF/25V Reel x 2000
ELV CAP SMD 10uF/25V Reel x 2000
£66.669
(£80.003)
£59.323
(£71.188)
£50.308
(£60.370)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 2
1+ @ £66.669
(£80.003)
5+ @ £59.323
(£71.188)
10+ @ £50.308
(£60.370)
hide price breaks
view price breaks
Stock Qty: 2
Order Code:
Description:
ELV CAP SMD 10uF/35V Reel x 2000
ELV CAP SMD 10uF/35V Reel x 2000
£65.278
(£78.334)
£58.043
(£69.652)
£49.195
(£59.034)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 1
1+ @ £65.278
(£78.334)
5+ @ £58.043
(£69.652)
10+ @ £49.195
(£59.034)
hide price breaks
view price breaks
Stock Qty: 1
Order Code:
Description:
ELV CAP SMD 10uF/50V Reel x 1000
ELV CAP SMD 10uF/50V Reel x 1000
£37.842
(£45.410)
£33.724
(£40.469)
£28.660
(£34.392)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 4
1+ @ £37.842
(£45.410)
5+ @ £33.724
(£40.469)
10+ @ £28.660
(£34.392)
hide price breaks
view price breaks
Stock Qty: 4
Order Code:
Description:
ELV CAP SMD 22uF/16V Reel x 2000
ELV CAP SMD 22uF/16V Reel x 2000
£59.360
(£71.232)
£55.120
(£66.144)
£52.947
(£63.536)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 1
1+ @ £59.360
(£71.232)
5+ @ £55.120
(£66.144)
10+ @ £52.947
(£63.536)
hide price breaks
view price breaks
Stock Qty: 1
Order Code:
Description:
ELV CAP SMD 22uF/25V Reel x 1000
ELV CAP SMD 22uF/25V Reel x 1000
£38.399
(£46.079)
£35.616
(£42.739)
£33.947
(£40.736)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 1
1+ @ £38.399
(£46.079)
5+ @ £35.616
(£42.739)
10+ @ £33.947
(£40.736)
hide price breaks
view price breaks
Stock Qty: 1
Order Code:
Description:
ELV CAP SMD 22uF/35V Reel x 1000
ELV CAP SMD 22uF/35V Reel x 1000
£44.000
(£52.800)
£39.500
(£47.400)
£36.950
(£44.340)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £44.000
(£52.800)
5+ @ £39.500
(£47.400)
10+ @ £36.950
(£44.340)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
ELV CAP SMD 47uF/16V Reel x 1000
ELV CAP SMD 47uF/16V Reel x 1000
£37.842
(£45.410)
£33.724
(£40.469)
£28.660
(£34.392)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 4
1+ @ £37.842
(£45.410)
5+ @ £33.724
(£40.469)
10+ @ £28.660
(£34.392)
hide price breaks
view price breaks
Stock Qty: 4
Order Code:
Description:
ELV CAP SMD 47uF/35V Reel x 1000
ELV CAP SMD 47uF/35V Reel x 1000
£47.859
(£57.431)
£43.407
(£52.088)
£36.618
(£43.942)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 11
1+ @ £47.859
(£57.431)
5+ @ £43.407
(£52.088)
10+ @ £36.618
(£43.942)
hide price breaks
view price breaks
Stock Qty: 11
Order Code:
Description:
ELV CAP SMD 47uF/35V Reel x 1000
ELV CAP SMD 47uF/35V Reel x 1000
£82.362
(£98.834)
£73.458
(£88.150)
£62.328
(£74.794)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 2
1+ @ £82.362
(£98.834)
5+ @ £73.458
(£88.150)
10+ @ £62.328
(£74.794)
hide price breaks
view price breaks
Stock Qty: 2
Order Code:
Description:
ELV CAP SMD 100uF/16V Reel x 1000
ELV CAP SMD 100uF/16V Reel x 1000
£47.700
(£57.240)
£44.520
(£53.424)
£42.347
(£50.816)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 2
1+ @ £47.700
(£57.240)
5+ @ £44.520
(£53.424)
10+ @ £42.347
(£50.816)
hide price breaks
view price breaks
Stock Qty: 2
Order Code:
Description:
ELV CAP SMD 100uF/25V Reel x 1000
ELV CAP SMD 100uF/25V Reel x 1000
£82.362
(£98.834)
£73.458
(£88.150)
£62.328
(£74.794)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 4
1+ @ £82.362
(£98.834)
5+ @ £73.458
(£88.150)
10+ @ £62.328
(£74.794)
hide price breaks
view price breaks
Stock Qty: 4
Order Code:
Description:
ELV CAP SMD 100uF/35V Reel x 1000
ELV CAP SMD 100uF/35V Reel x 1000
£82.362
(£98.834)
£73.458
(£88.150)
£62.328
(£74.794)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 3
1+ @ £82.362
(£98.834)
5+ @ £73.458
(£88.150)
10+ @ £62.328
(£74.794)
hide price breaks
view price breaks
Stock Qty: 3
Order Code:
Description:
ELV CAP SMD 100uF/50V Reel x 500
ELV CAP SMD 100uF/50V Reel x 500
£69.300
(£83.160)
£65.450
(£78.540)
£61.750
(£74.100)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 2
1+ @ £69.300
(£83.160)
5+ @ £65.450
(£78.540)
10+ @ £61.750
(£74.100)
hide price breaks
view price breaks
Stock Qty: 2
Order Code:
Description:
ELV CAP SMD 220uF/16V Reel x 1000
ELV CAP SMD 220uF/16V Reel x 1000
£57.598
(£69.118)
£51.198
(£61.438)
£43.407
(£52.088)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 1
1+ @ £57.598
(£69.118)
5+ @ £51.198
(£61.438)
10+ @ £43.407
(£52.088)
hide price breaks
view price breaks
Stock Qty: 1
Order Code:
Description:
ELV CAP SMD 220uF/16V Reel x 1000
ELV CAP SMD 220uF/16V Reel x 1000
£88.500
(£106.200)
£77.800
(£93.360)
£73.250
(£87.900)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £88.500
(£106.200)
5+ @ £77.800
(£93.360)
10+ @ £73.250
(£87.900)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
ELV CAP SMD 220uF/35V Reel x 500
ELV CAP SMD 220uF/35V Reel x 500
£69.006
(£82.807)
£61.660
(£73.992)
£52.311
(£62.773)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 1
1+ @ £69.006
(£82.807)
5+ @ £61.660
(£73.992)
10+ @ £52.311
(£62.773)
hide price breaks
view price breaks
Stock Qty: 1
Order Code:
Description:
ELV CAP SMD 470uF/16V Reel x 500
ELV CAP SMD 470uF/16V Reel x 500
£69.006
(£82.807)
£61.660
(£73.992)
£54.500
(£65.400)
Price Per Reel Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £69.006
(£82.807)
5+ @ £61.660
(£73.992)
10+ @ £54.500
(£65.400)
hide price breaks
view price breaks
Stock Qty: 0
Product Specifications
| Specification | 100-812 | 100-866 | 100-868 | 100-870 | 100-818 | 100-819 | 100-849 | 100-848 | 100-823 | 100-821 | 100-850 | 100-825 | 100-851 | 100-852 | 100-826 | 100-827 | 100-853 | 100-857 | 100-829 | 100-828 | 100-855 | 100-810 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Voltage
|
10V | 50V | 50V | 50V | 16V | 25V | 35V | 50V | 16V | 25V | 35V | 16V | 35V | 35V | 16V | 25V | 35V | 50V | 16V | 16V | 35V | 16V |
|
Reel Quantity
|
500 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 1000 | 2000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 500 | 1000 | 1000 | 500 | 500 |
|
Case
|
F | A | A | A | A | A | A | B | A | B | C | B | C | D | C | D | D | E | C8 | D | E | E |
|
Value
|
1000uF | 1.0uF | 2.2uF | 4.7uF | 10uF | 10uF | 10uF | 10uF | 22uF | 22uF | 22uF | 47uF | 47uF | 47uF | 100uF | 100uF | 100uF | 100uF | 220uF | 220uF | 220uF | 470uF |
