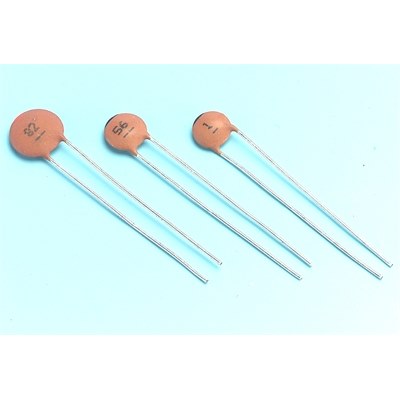

CER. DISC 5.0mm 1.0pF (5.0mm)
by Hitano
Temperature compensating range. Close tolerance high stability ceramic capacitors for use in tuned circuits, where low losses or temperature controlled capacitance changes are required.
| Dielectric : | NPO |
| Lead length: | 25mm |
| Lead Pitch: | 2.54mm |
| Temp. range: | -25°C to +85°C |
RoHS compliant
Minimum order quantity 10pcs.
Available until Stocks Exhausted
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 111-010 |
|---|---|
|
Dia. (mm)
|
5.0 |
|
Tol.
|
±0.25pF |
|
Dielectric
|
NPO |
|
Voltage
|
100 |
|
Lead pitch (mm)
|
5.0 |
|
Value
|
1.0pF |
