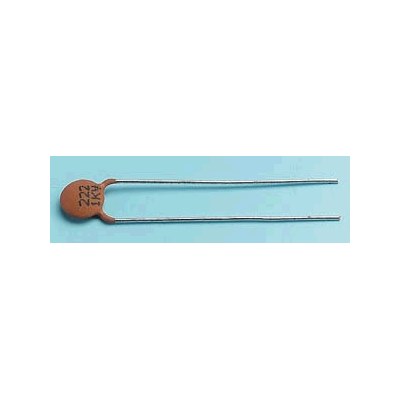

1KV CER. DISC 5mm 10NF
by Hitano
1kV rating, suitable for high frequency decoupling applications.
Dielectric: Z5V (F)
Lead length: 25mm
Temp. range: -10°C to +70°C
Insulation resistance: >10,000Mohm
Dielectric strength: 2.5 times rated voltage.
View product specifications
Dielectric: Z5V (F)
Lead length: 25mm
Temp. range: -10°C to +70°C
Insulation resistance: >10,000Mohm
Dielectric strength: 2.5 times rated voltage.
RoHS compliant
Available taped and reeled to special order
Minimum order quantity for ceramic capacitors is 10pcs.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 110-511 |
|---|---|
|
Tolerance
|
+80%-20% |
|
Lead pitch (mm)
|
5.08 |
|
Rated voltage
|
1kV |
|
Value
|
10nF |
|
Dia (mm)
|
8 |
