D Connectors - High Density

Brand
Scroll Down for Pricing Options

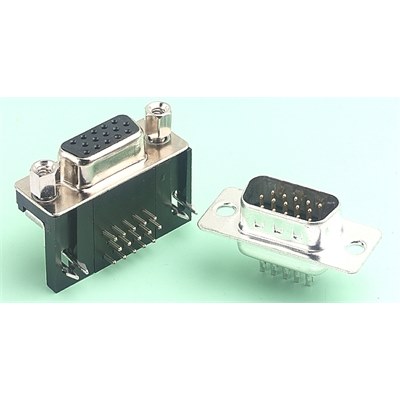

Superior quality commercial D connectors in a high density pin layout. 15 way types utilise a standard 9 way size shell; 26 way utilise a 15 way shell, and 44 way utilise a standard 25 way shell. Tin plated dimpled steel shells on plugs ensure full EMI/RFI shielding. Right angle types incorporate jack posts and PCB locating lugs.

Contact rating:5 A
Dielectric strength:1000 VAC
Insulation resistance:1000MΩ minimum at 500 VDC
Contact resistance:30mΩ max. at 100VDC
Temperature range:-55°C to +105°C

RoHS compliant

* Available until stocks exhausted *

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 720-072 720-073 720-027 720-032 720-044
Description
15 way HD plug 90° PCB - Pinrex 982-11-C15111 15 way HD socket - 90° PCB - Pinrex 982-11-D15112 26 way H.D solder plug - - Pinrex 982-31-C26203 26 way H.D. soldersocket -- Pinrex 982-31-D26203 44 way H.D.solder plug - Pinrex 982-31-C44203
