Mini DIN Sockets - vertical PCB mounting

Brand
Scroll Down for Pricing Options

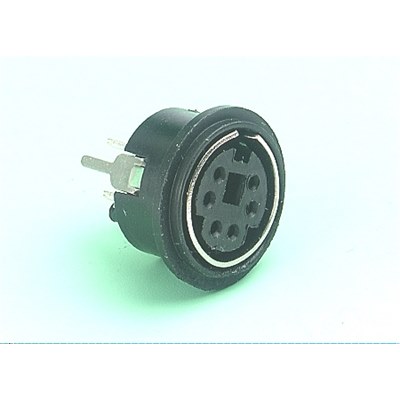

4 way vertical Mini DIN skt.
Roll over or select images to enlarge

Mini DIN Sockets - vertical PCB mounting

Brand
Scroll Down for Pricing Options

4 pin & 6 pin miniature DIN sockets for use with computer equipment or peripherals.
Offering maximum space saving in high-density layouts.
The sockets are fully shielded and mount vertically onto the PCB and incorporate a
flange for panel mounting (panel cutout 12.5mm, max thickness 6mm).
Rated 2A 12Vdc, 1A 100VAC max.
Contact resistance >30mΩ

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)

Product Specifications

Specification 700-304 700-306
Type
4 way vertical PCB socket 6 way vertical PCB socket
