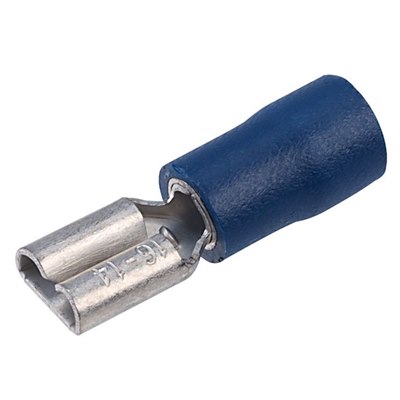

Female spade receptacle - Blue 4.8mm x 0.8mm (Pk x 100)
by Krimpterm
Roll over or select images to enlarge
Female spade receptacle - Blue 4.8mm x 0.8mm (Pk x 100)
by Krimpterm
Female Spade Disconnects
- Materials:
- Conductor: Brass
- Sleeve: Copper tubular
- Insulation: Vinyl
- Plating: Tin
- Operating temperature: -10°C to +75°C
- Max. voltage rating: 300V
- Max. current rating: Red - 10A, Blue - 15A, Yellow - 24A
- Flared barrel for easy wire insertion
- Low insertion force and easy crimping whilst ensuring secure termination
Red - Wire size 0.25-1.65 mm² (AWG22-16)
Blue - Wire size 1.04-2.63 mm² (AWG16-14)
Yellow - Wire size 2.63-6.64 mm² (AWG12-10)
All Crimp Terminals supplied in packs of 100
UL & RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 709-120 |
|---|---|
|
Tab Size (mm)
|
0.8 x 4.75mm |
|
Type
|
BFS48-8 Blue receptacle |
