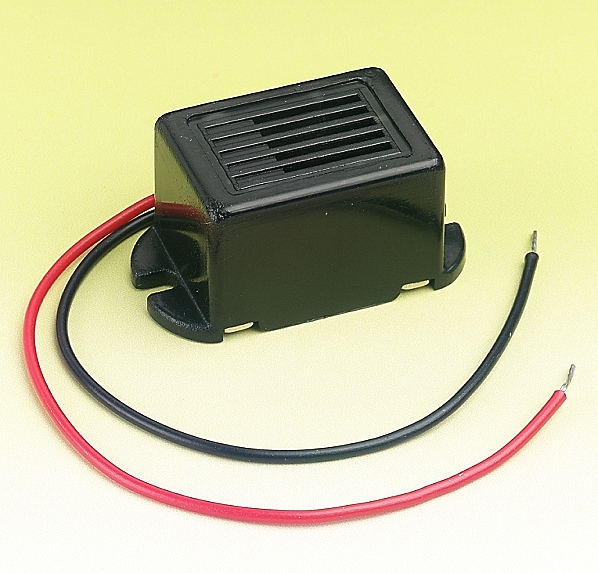

Miniature Electromechanical Buzzers
RoHS compliant
| Frequency: | 420 Hz |
| Dims | L: 23.5 mm |
| W: 17.5 mm | |
| H: 15.5mm | |
| Fixing centres: | 27.5mm |
| Lead length: | 100 mm |
| Sound output: | 85 db at 20 cm |
| Current: | 25mA |
| Temp. range: | -20°C to +70°C |
Available until stocks exhausted
View product specification >
| Order Code | Description | Price £ each | Add to basket | ||
| 1+ | 25+ | 100+ | |||
400-013
|
Buzzer HS3615 1.5V | £0.4400 | £0.3900 | £0.3300 |
Qty
|
|
400-018
|
Buzzer HS3603 3V | £0.4400 | £0.3900 | £0.3300 |
Qty
|
Specification
| Product | Nom. Voltage | Operating Range | Model |
| 400-013 | 1.5V | 1.1-2V DC | HS-3615 |
| 400-018 | 3V | 2-4V DC | HS-3603 |
