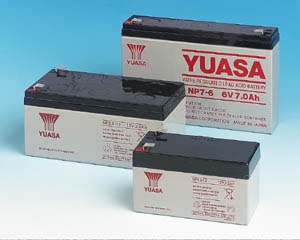

Lead Acid Rechargeable Batteries- Yuasa
Connection is via tab terminals (sizes up to 12.0Ah) or bolt terminals (NP17-12, 24-12 & 38-12).
Charging method: Constant voltage charge at 20ºC Standby use charging voltage 2.25 to 2.30V per cell (no charging current limit required). Cyclic use charging voltage 2.40 to 2.50V per cell (maximum charging current 25% of rated capacity).
RoHS exempt.
| * | Maintenance-free |
| * | Excellent discharge recovery. |
| * | No electrolyte leakage |
| * | Overcharge vent protection |
| * | Useable in any position |
| * | Multipurpose: Float or cyclic use |
View product specification >
| Order Code | Description | Price Per Unit (£) | Add to basket | ||
| 1+ | 5+ | 25+ | |||
NP1.2-6
|
Yuasa L/A battery 6V 1.2Ah | £9.0500 | £7.7500 | £6.9000 |
Qty
|
|
NP2.8-6
|
Yuasa L/A battery 6V 2.8Ah | £10.9000 | £9.5500 | £8.6000 |
Qty
|
|
NP4-6
|
Yuasa L/A battery 6V 4.0Ah | £8.3500 | £7.1500 | £6.3500 |
Qty
|
|
NP7-6
|
Yuasa L/A battery 6V 7.0Ah | £9.8000 | £8.4000 | £7.4500 |
Qty
|
|
NP10-6
|
Yuasa L/A battery 6V 10Ah | £15.2500 | £13.1000 | £11.6500 |
Qty
|
|
NP12-6
|
Yuasa L/A battery 6V 12Ah | £14.6800 | £12.5800 | £11.2000 |
Qty
|
|
NP0.8-12
|
Yuasa L/A battery 12V 0.8Ah | £11.7000 | £10.0000 | £8.9000 |
Qty
|
|
NP1.2-12
|
Yuasa L/A battery 12V 1.2Ah | £8.9000 | £7.6300 | £6.7800 |
Qty
|
|
NP2-12
|
Yuasa L/A battery 12V 2.0Ah | £11.9000 | £10.2000 | £9.0500 |
Qty
|
|
NP2.1-12
|
Yuasa L/A battery 12V 2.1Ah | £10.4000 | £8.9000 | £7.9000 |
Qty
|
|
NP2.8-12
|
Yuasa L/A battery 12V 2.8Ah | £11.9000 | £10.2000 | £9.0500 |
Qty
|
|
NP3.2-12
|
Yuasa L/A battery 12V 3.2Ah | £12.6000 | £10.7800 | £9.5800 |
Qty
|
|
NP4-12
|
Yuasa L/A battery 12V 4.0Ah | £14.1000 | £12.0600 | £10.7200 |
Qty
|
|
NP7-12
|
Yuasa L/A battery 7Ah 12V | £13.4500 | £11.5200 | £10.2400 |
Qty
|
|
NP12-12
|
Yuasa L/A battery 12V 12Ah | £28.2000 | £24.1500 | £21.5000 |
Qty
|
| NP17-12 | Yuasa L/A battery 12V 17Ah | £43.2000 | £37.0000 | £32.9000 |
Qty
|
|
NP24-12
|
Yuasa L/A battery 12V 24Ah | £52.5000 | £45.0000 | £40.0000 |
Qty
|
|
NP38-12
|
Yuasa L/A battery 12V 38Ah | £75.5000 | £67.7000 | £60.0000 |
Qty
|
Specification
| Product | Voltage | Capacity | Dischg (20 hrs) | Dims. (mm) LxWxH | Weight |
| NP1.2-6 | 6V | 1.2Ah | 60mA | 97x25x57.5 | 0.34kg |
| NP2.8-6 | 6V | 2.8Ah | 140mA | 134x34x67 | 0.65kg |
| NP4-6 | 6V | 4.0Ah | 200mA | 70x47x109 | 0.90kg |
| NP7-6 | 6V | 7.0Ah | 300mA | 151x34x101 | 1.25kg |
| NP10-6 | 6V | 10.0Ah | 500mA | 151x50x101 | 1.93kg |
| NP12-6 | 6V | 12.0Ah | 600mA | 151x50x101 | 2.05kg |
| NP0.8-12 | 12V | 0.8Ah | 40mA | 96x25x61.5 | 0.35kg |
| NP1.2-12 | 12V | 1.2Ah | 60mA | 97x48x57.5 | 0.60kg |
| NP2-12 | 12V | 2.0Ah | 100mA | 151x21x89 | 0.70kg |
| NP2.1-12 | 12V | 2.1Ah | 105mA | 178x34x67 | 0.90kg |
| NP2.8-12 | 12V | 2.8Ah | 140mA | 134x67x67 | 1.15kg |
| NP3.2-12 | 12V | 3.2Ah | 160mA | 134x67x67 | 1.17kg |
| NP4-12 | 12V | 4.0Ah | 200mA | 90x70x106 | 1.70kg |
| NP7-12 | 12V | 7.0Ah | 350mA | 151x65x103 | 3.00kg |
| NP12-12 | 12V | 12.0Ah | 600mA | 151x98x97.5 | 4.00kg |
| NP17-12 | 12V | 17.0Ah | 750mA | 181x76x167 | 6.10kg |
| NP24-12 | 12V | 24.0Ah | 1200mA | 166x175x125 | 8.50kg |
| NP38-12 | 12V | 38.0Ah | 1900mA | 197x165x170 | 13.80kg |
